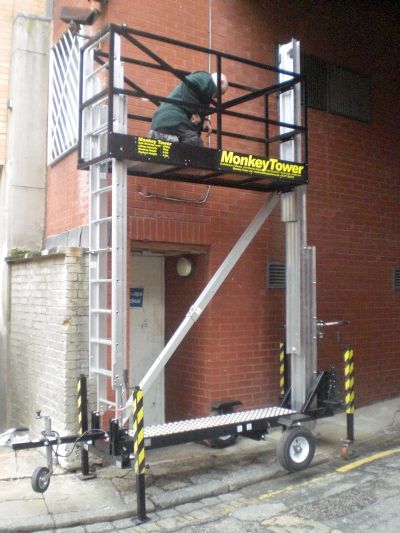

Monkey Tower Trailer Mounted Scaffold Tower or Scissor Lift Alternative
An innovative unfolding scaffolding system; ideal for jobs that have traditionally been done by scaffold towers, cherry pickers, scissor lifts or ladders.
Easily and Quickly Erected
Monkey Tower can be put up by a single person within five minutes of arriving at site.
Unlike a scaffold tower the entire erection procedure is carried out at ground-level and with single piece construction there are no parts to lose.
When the Monkey Tower is in position just:
(1) Set the stabiliser jacks.
(2) Pull ladder into position.
(3) Winch up the platform.
(4) Climb and get to work.
Monkey Tower latches at 0.25m intervals a maximum working height of 6.5m (21ft).
Reliable and Safe
Monkey Tower is human powered and unlike scissor lifts or cherry pickers has no batteries to go flat or replace and no electronics or hydraulics to maintain.
All safety barriers and handrails are permanently fixed in place.
All latches automatically lock into position.
Monkey Tower is CE marked and has been designed and tested to BS EN 1004:2004.
Easily Road Towable
With a weight of just 380 kg and a built in trailer (including towbar, wheels, lights and even numberplate clips) Monkey Tower can be towed by any towbar equipped car or van.
Monkey Tower is a very safe and stable trailer that can be towed up to the legal limit. Unlike some cherry pickers it is not limited to a speed of 50 mph.
No waiting for deliveries or unloading from trailers or low-loaders.
Lifts Tools and Equipment
Up to 75kg of tools and equipment can be placed in the platform of Monkey Tower.
Then it is a simple case of winching the platform up, raising the equipment at the same time.
No more carrying tools precariously up a ladder or setting up hoists to raise equipment.
Fits Through A Single Door
With Monkey Tower's height of 1.9m and width of 1.13 m it easily fits through a double door. By sliding the wheels in the width can be reduced to 0.82m. By sliding the leg-jacks off the width can be reduced even further to 0.7m (2'4") allowing it to pass through a domestic single door.
Easily Moved on Site
The light weight (380 kg) of Monkey Tower and built in roadwheels make the Monkey Tower simple for even a single person to manoeuver around site.
Unlike many other pieces of access equipment, the ground type (mud, grass or even gravel) is not a barrier to using the Monkey Tower.
Technical Details
Loads
|
Weight |
380 kg |
|
Safe Working Load |
250 kg |
|
Lifting Capacity |
75 kg |
Dimensions
|
A |
Height - Max Working |
6.5m |
|
B |
Height - Max Platform |
4.5m |
|
D |
Height - Transport |
2.1m |
|
E |
Height - Minimum |
1.9m |
|
F |
Length - Minimum |
2.7m |
|
G |
Length - Towing |
3.4m |
|
H |
Width - Minimum |
0.7m |
|
I |
Width - Maximum |
1.3m |
|
J |
Width - Towing |
1.1m |
Downloads
Monkey Tower Gallery
Optional Extras
Item |
Description |
Image |
|---|---|---|
|
Monkey Tower |
Monkey Tower 6.5m working height trailer mounted scaffolding system |
|
|
Side Gate Platform |
Platform fitted with a sliding side door to one side of platform. N.B this option cannot be retrofitted and may delay delivery time. |
|
|
Barrel Lock |
Inserts in hitch (prevents attachment or removal of hitch from car or post) |
|
|
Ball Lock |
Inserts inside hitch to lock when not attached to vehicle/post |
|
|
Custom Cover |
Custom made Monkey Tower cover made from lightweight breathable 100% ultraviolet resistant voyager fabric. Suitable for indoor or outdoor use. Eyeholes and bungee cords for tying down included. |
|
|
Hitch Post |
Requires concreting into ground – comes with padlock |
|
|
Large Stabiliser Pads |
Stabiliser Pads (x4) 400mm x 400mm 18mm thick stabilizer pads with integrated carry handle. Made from recycled plastic. |
|
|
Indoor Stabiliser Pads |
Indoor stabiliser pads (x4) approx 100mm x 100mm |
|
|
Wheel Chocks |
Suitable for chocking Monkey Tower wheels |
|
|
Spare Wheel |
Spare wheel for Monkey Tower |
|
|
Spare Wheel Carrier |
Mounts spare wheel on to towbar of Monkey Tower |
Monkey Tower
Monkey Tower 6.5m working height trailer mounted scaffolding system
Side Gate Platform
Platform fitted with a sliding side door to one side of platform. N.B this option cannot be retrofitted and may delay delivery time.
Roof Ladder Attachment
Short section of vertical ladder that allows attachment of a roof ladder to the Monkey Tower. See the Roof Access section for more information.
Apex extension platform
Platform attaches to monkey tower to increase working height by 1m - giving maximum working height of 7.5m. See the Roof Access section for more information.
Barrel Lock
Inserts in hitch (prevents attachment or removal of hitch from car or post)
Ball Lock
Inserts inside hitch to lock when not attached to vehicle/post
Custom Cover
Custom made Monkey Tower cover made from lightweight breathable 100% ultraviolet resistant voyager fabric. Suitable for indoor or outdoor use. Eyeholes and bungee cords for tying down included.
Hitch Post
Requires concreting into ground – comes with padlock
Large Stabiliser Pads
Stabiliser Pads (x4) 400mm x 400mm 18mm thick stabilizer pads with integrated carry handle. Made from recycled plastic.
Indoor Stabiliser Pads
Indoor stabiliser pads (x4) approx 100mm x 100mm
Wheel Chocks
Suitable for chocking Monkey Tower wheels
Spare Wheel
Spare wheel for Monkey Tower
Spare Wheel Carrier
Mounts spare wheel on to towbar of Monkey Tower
